D Connector Gaskets

We offer a range of D Connector Gaskets for various uses and a variety of industries. Contact us today for information on the different types we offer.

9DXX – 9 Pin Connector – .004″ Thick

Part Number	Material	A	B
9D10	Stainless Steel	.44″	.22″
9D12	Beryllium Copper	.44″	.22″
9D20	Stainless Steel	.35″	.18″
9D22	Beryllium Copper	.35″	.18″

15DXX – 15 Pin Connector – .004″ Thick

Part Number	Material	A	B
15D10	Stainless Steel	.44″	.22″
15D12	Beryllium Copper	.44″	.22″
15D20	Stainless Steel	.35″	.18″
15D22	Beryllium Copper	.35″	.18″

25DXX – 25 Pin Connector – .004″ Thick

Part Number	Material	A	B
25D10	Stainless Steel	.44″	.22″
25D12	Beryllium Copper	.44″	.22″
25D20	Stainless Steel	.35″	.18″
25D22	Beryllium Copper	.35″	.18″

37DXX – 37 Pin Connector – .004″ Thick

Part Number	Material	A	B
37D10	Stainless Steel	.44″	.22″
37D12	Beryllium Copper	.44″	.22″
37D20	Stainless Steel	.35″	.18″
37D22	Beryllium Copper	.35″	.18″

50DXX – 50 Pin Connector – .004″ Thick

Part Number	Material	A	B
50D10	Stainless Steel	.55″	.28″
50D12	Beryllium Copper	.55″	.28″
50D20	Stainless Steel	.45″	.23″
50D22	Beryllium Copper	.45″	.23″

Click here to download our 52-page Shielding Product Catalog.

Interactive PDF Sales Drawings

Click to go to our Document Manager page where you can search our site or type in part numbers from our 52-page Shielding Product Catalog to obtain their Interactive PDF Sales Drawings.

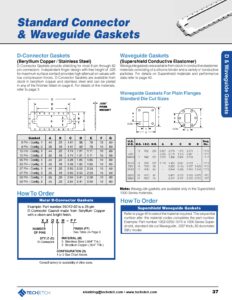

Click to download the Connector & Waveguide Gaskets Specifications sheet
